Type Fixed/HDTV/Megapixel/PTZ | Pixel Resolution 5 Mega Pixel | Focal Length ƒ/1.85–ƒ/2.4 | Optical Zoom 2 x | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Power options PoE | Environment Outdoor | Operating temperature range -30 to 45º C | Colour White | Dimensions 90 x 94 x 179.5 mm
Type Fixed/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.4 mm | IR Illumination | Sensor size 1/2.7 CMOS | Electronic Shutter Speed 1/38500 s to 1/5 s | 1xMicroSD Card Slot | 1xRJ45 | Power options PoE | Power supply requirements Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 | Environment Outdoor | Operating temperature range -30 to 50 °C | Colour Black | Dimensions 170x101mm

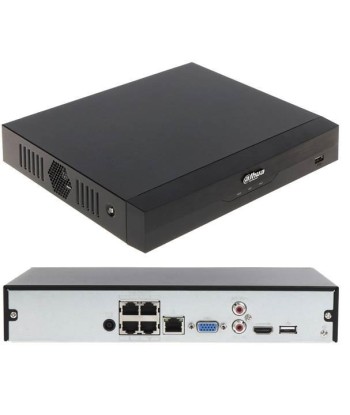

Channels 4 | Drives/bays 1 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 53 VDC, 1.226 A | Power consumption 36 Watts | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C
Type HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 3.6 mm; 2.8 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0007 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Supports card capacities up to 256GB | Power supply requirements 12 VDC; PoE | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour White | Dimensions 99.1 mm × Φ121.9 mm
Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.7 mm-13.5 mm | IR Illumination | Sensor size 1/2.7" | Microphone Built-in | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range -40 C to +60 C | Dimensions 94.0 mm × Φ122.0 mm

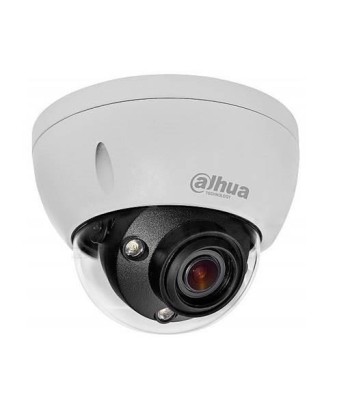

Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.7 mm–12.0 mm | IR Illumination | Sensor size 1/1.8” | Min. Illumination 0.0007 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 2xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/24 VAC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range –30 °C to +60 °C | Dimensions Φ159.1 mm × 118.1 mm
Detector Type Fire | Operating temperature range 0°С to +50°С | Power supply requirements 2×CR123A battery | Colour White | Included Accessories SmartBracket mounting panel;Installation kit;2 × CR123A battery (pre-installed);Quick Start Guide | Dimensions 44×86×86 mm
Type HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/2.7" CMOS | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0007 Lux | Effective pixels 3200 × 1800 | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Power options PoE | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 85.6 mm × Φ94.0 mm
