Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range -40 C to +60 C | Colour Black | Dimensions 89.1 mm 111.7 mm
Type Fixed | Pixel Resolution 8 Mega Pixel | Focal Length 2.8mm | IR Illumination | Microphone Built-in | 1xMicroSD Card Slot | Power options PoE/12V | Power supply requirements 12V 1A, PoE Standard 802.3at | Operating temperature range −25 °C to +40 °C | Included Accessories Installation template;Installation kit;Quick start guide | Colour White | Dimensions 198 × 76 × 76 mm
Type HDTV/Megapixel/Outdoor/PTZ | Pixel Resolution 3 Mega Pixel | Focal Length 4.0 mm | IR Illumination | Sensor size 1/2.8" CMOS | Effective pixels 2304 (H) × 1296 (V) | 1xMicroSD Card Slot | 1xRJ45 | Supports card capacities up to 256GB | Power options 12V | Power supply requirements 12 VDC, 1 A ± 10% (included) | Environment Outdoor | Operating temperature range –30 °C to +55 °C | Included Accessories power supply | Colour White | Dimensions 140.5 mm × Φ111.0 mm
Detector Type Fire | Wireless | Operating temperature range from 0°С to +50°С | Power supply requirements 110–240 V~, 50/60 Hz | Colour White | Dimensions 122 × 122 × 54 mm

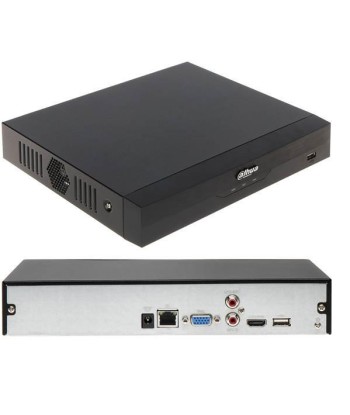

Channels 4 | Drives/bays 1 | 1x15pin D-sub | 1xHDMI | 1xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 1xRJ45 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C
Type HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.8 mm | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Dimensions 192.7 mm 70.5 mm 66.4 mm
Type Fixed/Outdoor | Pixel Resolution 4 Mega Pixel | Focal Length 2.7 mm–13.5 mm | IR Illumination | Sensor size 1/2.9" CMOS | Microphone Built-in | Min. Illumination 0.006 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Power options PoE/12V | Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE);Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity) | Operating temperature range –30 °C to +60 °C | Dimensions 108.3 mm × Φ122 mm
Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.7 mm-13.5 mm | IR Illumination | Sensor size 1/2.7" | Microphone Built-in | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range -40 C to +60 C | Dimensions 94.0 mm × Φ122.0 mm
Type Fixed Dome/HDTV/Megapixel/Outdoor | Pixel Resolution 2 Mega Pixel | Focal Length 2.8 mm | IR Illumination | Sensor size 1/3” | Lens Mount M12 | Min. Illumination 0.0025 Lux | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Supports card capacities up to 256GB | Power options PoE/12V | Environment Outdoor | Operating temperature range -40°C~+60°C | Dimensions Φ110.7 mm × 88.7 mm
Type HDTV/Megapixel/Outdoor | Pixel Resolution 4 Mega Pixel | IR Illumination | Sensor size 1/1.8" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0007 Lux | Effective pixels 2688 (H) × 1520 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xAudio-In | 1xAudio-Out | 1xRJ45 | 1xAlarm In | 1xAlarm Out | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour White | Dimensions 94.0 mm × Φ122.0 mm
Type HDTV/Megapixel/Outdoor | Pixel Resolution 6 Mega Pixel | Focal Length 2.8 mm | Sensor size 1/2.7" | Microphone Built-in | Lens Mount M12 | Min. Illumination 0.0005 Lux | Effective pixels 3288 (H) × 1850 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | 1xRJ45 | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af) | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Colour Black | Dimensions 105.5 mm × Φ122.0 mm
